Tutorial 4: reading the report

handoverlab report results/study-smoke (or study --report) writes report/report.md, report/report.html (self-contained, figures embedded), report/summary.json with every number, and the figures as PNG files. This tutorial reads the report of the study from Tutorial 3 section by section. Its numbers come from 6 test seeds of a 20-second scenario: they illustrate how to read a report, not how A3 and CHO compare.

Provenance

HandoverLab 0.4.0a1 (model 1), Python 3.12.10, NumPy 2.4.6, SciPy 1.18.0, Windows-2022Server-10.0.20348-SP0.
Study file hash `c4f0ef781591085e`.
Jobs: tune1 8, tune2 8, test 12; 80 rule runs simulated, the rest reused; 127 s of job time; 1 session(s).

The study-file hash identifies the resolved study (study.lock.json); the model version changes whenever identical inputs would give different results. Quote both when you report results, and keep the study directory: handoverlab verify --results can repeat stored runs on another machine and compare their event-log fingerprints.

Tuning: gates first

The gate table lists every gate that did not pass, then counts the passed ones:

gate status group method budget detail
budget_binding warn layout.site_spacing_m=150 - standard the reference rule has only 1 failure on the tuning runs (minimum 3); ...
budget_binding warn layout.site_spacing_m=150 - strict ...

Read the gates before any result. A BLOCK means no test ran. A warn limits what a result can mean: here, at 150 m, the failure budget rests on one reference failure, so "within the failure budget" is a weak statement at that site spacing. The Grid extensions table lists every grid that the policy extend widened (here A3's offset from 6 to 8 dB).

Tuning: what was selected

For every tuning group the report gives the reference rule, the budgets and the selected setting per method and budget, with how many of the 8 settings met the budget:

method budget selected setting unnecessary_pm failures_pm prepared cells within budget budget met
A3 standard off_db=6, ttt_s=0.08 1.484 0.234 0.000 6 / 8 yes
A3 strict off_db=6, ttt_s=0.04 1.563 0.078 0.000 4 / 8 yes
CHO standard o_exec_db=4, ttt_exec_s=0.04 1.875 0.000 0.096 5 / 8 yes
CHO strict o_exec_db=4, ttt_exec_s=0.04 1.875 0.000 0.096 5 / 8 yes

Tuning figure

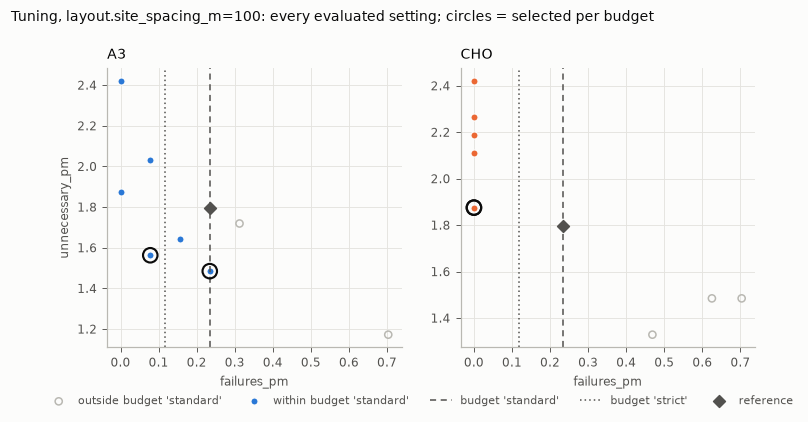

The figure shows every evaluated setting: failure rate (the constraint) against unnecessary-handover rate (the objective). Filled points are within the first budget (dashed line), the circles are the selected settings, the diamond is the reference rule. Two things to look for:

  • Is the trade-off real? If all points sit left of the budget lines, the budget does not constrain the choice (the budget_binding gate says so).
  • Is the winner isolated? If many filled points have nearly the same objective, the tie-breaks decide (the flat_optimum gate). Here CHO met both budgets with the same setting, so CHO@standard and CHO@strict are identical in the test stage.

Every evaluated setting and its means are in tables/tuning and tuned/<group>.json, so the selection can be redone or checked.

Test results: means

rule unnecessary_pm failures_pm handovers_pm prepared_cells_mean
A3-ref 1.823 [0.888, 2.757] 0.339 [0.141, 0.536] 17.214 [15.267, 19.160] 0.000 [0.000, 0.000]
A3@standard 1.458 [0.676, 2.240] 0.234 [0.085, 0.384] 16.927 [14.899, 18.955] 0.000 [0.000, 0.000]
CHO@standard 2.083 [0.950, 3.217] 0.026 [-0.031, 0.083] 17.760 [15.955, 19.566] 0.095 [0.088, 0.101]

Means over the 12 test runs (2 conditions x 6 seeds) with 95 % t intervals, then the same per condition. These intervals describe the spread between worlds; they are wide because worlds differ a lot. They are not the right basis for comparing rules, because every rule ran on the same worlds.

Test results: paired comparisons

The comparisons use the differences run by run (rule minus baseline on the same condition and seed), which removes the differences between worlds:

rule pairs mean baseline difference t interval bootstrap interval change % p p (Holm)
A3@standard 12 1.458 1.823 -0.3646 [-0.7510, 0.0218] [-0.7031, -0.0521] -20.0 0.0430 0.1719
CHO@standard 12 2.083 1.823 0.2604 [-0.0971, 0.6179] [-0.0260, 0.5990] 14.3 0.2109 0.6328

(unnecessary handovers per UE-minute; some columns left out.)

  • difference with its t interval and bootstrap interval: the size of the effect and its uncertainty. Report these first.
  • change % and the ratio interval: the same relative to the baseline mean.
  • p: the Wilcoxon signed-rank test on the paired differences (zero differences dropped; exact up to 500 non-zero differences, normal approximation above). p (Holm) is adjusted for all comparisons of the same metric: use it when you look at several rules at once.
  • non-zero: how many of the pairs differ at all. With per-run rates built from a handful of events, many pairs are tied.

Reading the rows above: tuned A3 had 0.36 fewer unnecessary handovers per UE-minute than the reference A3 on average, but the t interval includes zero and after the Holm adjustment p = 0.17: with 12 pairs this is not a demonstrated difference. CHO's difference has the opposite sign and is not significant either. For failures (not shown) CHO@standard had 0.31 fewer failures per UE-minute than the reference with p (Holm) = 0.03.

Paired differences

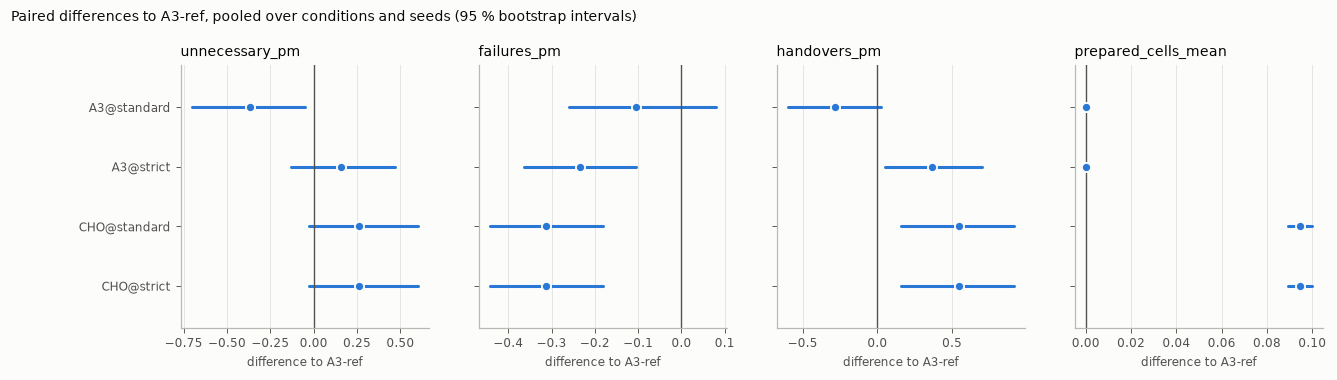

The figure shows the mean paired difference with its bootstrap interval for each metric. An interval that crosses zero is not a demonstrated difference.

A checklist

  1. Gates: any BLOCK? Which warnings, and do they touch the comparison you care about?
  2. Budgets: did every method meet them? Is the trade-off constrained?
  3. Selected settings: interior points of the grids? Any grid extensions?
  4. Paired differences with intervals, per condition as well as pooled. Is the sign the same in every condition? When the conditions differ in scale, the per-condition rows are the primary test: the pooled Wilcoxon test mixes differences that are not symmetric about one centre. With fewer than about 20 pairs the percentile bootstrap interval tends to be too narrow; rely on the t interval.
  5. Holm-adjusted p-values when several rules are compared on one metric (each metric is its own family; there is no correction across metrics).
  6. Enough pairs: handoverlab.stats.seeds_needed(sd, half_width) tells how many seeds a given interval width needs, from the spread of a pilot study like this one.
